Swag 10

Retail Price

2,055.00

This Bike is Available in other Colours - Please Request more information

FRAME: All-new SWAG frame introduces next generation of Kellys progressive enduro bicycles, which can go far beyond the riding experience known to the most extreme riders so far. THINKLINK: THINK LINK means totally independent rear suspension. It ensures no negative influence from drivetrain and brakes, no pedal kickback and constant rear triangle geometry with absolutely no chain growth. SUSPENSION: The SR Suntour Aion air fork with a 160mm of travel creates a perfect combo with the custom-tuned Rock Shox Deluxe RT damper on the rear end for the full enduro capabilities and in-trail control. DRIVETRAIN: Sram NX 1×11 drivetrain is swift and precise keeping the chain on the sprockets to prevent any ghost shifting while shredding the most difficult sections of the trail.

Specifications

  • FRAME: KELLYS Enduro 27.5 / Direct link, Seal Nut, 165mm rear travel, tapered HT, internal routing, 12x148mm Boost thru axle
  • FRAME SIZE: S / M / L
  • FORK: SR SUNTOUR Aion LO-R (27.5), 160mm, air / Speed Lockout / 15Q-Loc thru axle
  • REAR SHOCK: ROCK SHOX Deluxe RT, DebonAir / Rapid Recovery / Open-Pedal (230x65mm)
  • HEAD PARTS: FSA 1.5 integrated
  • B.B.PARTS: SRAM PressFit GXP
  • CRANKSET: SRAM NX 1x X-Sync (30) – length 170mm
  • SHIFTERS: SRAM NX 11-Speed X-Actuation Trigger (rear)
  • R/DERAILLEUR: SRAM NX 1×11 X-Horizon
  • SPEED: 11
  • CASSETTE SPROCKET: SRAM PG-1130-11 (11-42)
  • CHAIN: KMC X10L (114 links)
  • BRAKES: SHIMANO M425 / 395 Hydraulic Disc
  • BRAKE ROTORS: 180mm front / 180mm rear
  • BRAKE LEVERS: SHIMANO BL-M425
  • HUBS: NOVATEC Disc (15x100mm / 12x142mm / 32 holes)
  • THRU AXLE: SR SUNTOUR – 15mm front / 12mm rear
  • RIMS: KLS Valor Disc 584×23 (32 holes)
  • SPOKES: stainless steel black
  • TIRES: SCHWALBE Nobby Nic Performance 60-584 (27.5×2.35) folding
  • STEM: RACE FACE Chester – diam 28.6mm / bar bore 31.8mm / 8° / length 50mm
  • HANDLEBAR: RACE FACE Respond RiseBar – diam 31.8mm / width 785mm
  • GRIPS: KLS Crypton LockOn
  • SEAT POST: KLS Active – diam 30.9mm / length 350mm (S), 400mm (M – L)
  • SADDLE: KLS Styx
  • PEDALS: KLS Master – alloy

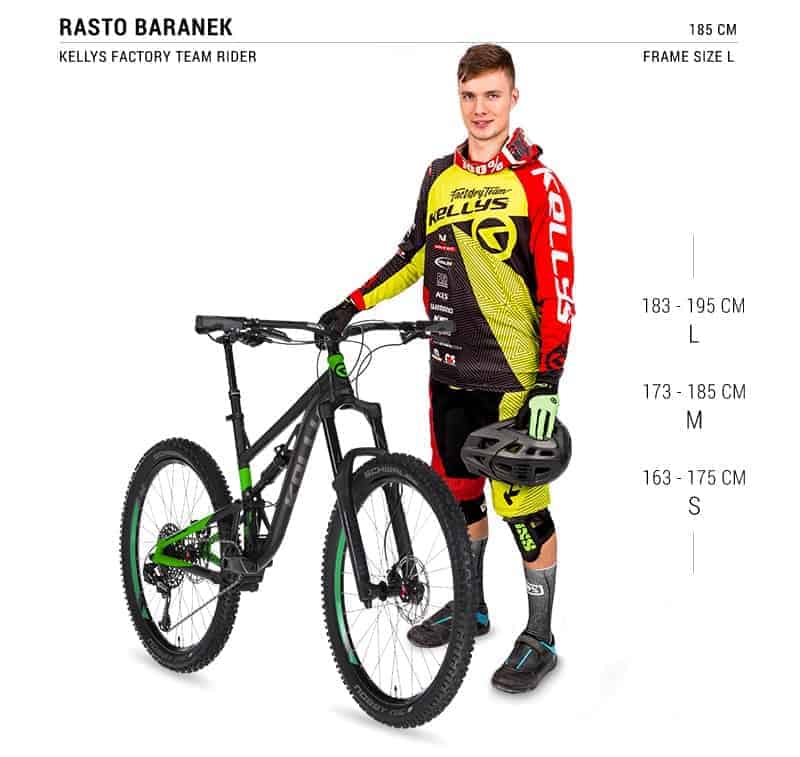

Frame Size

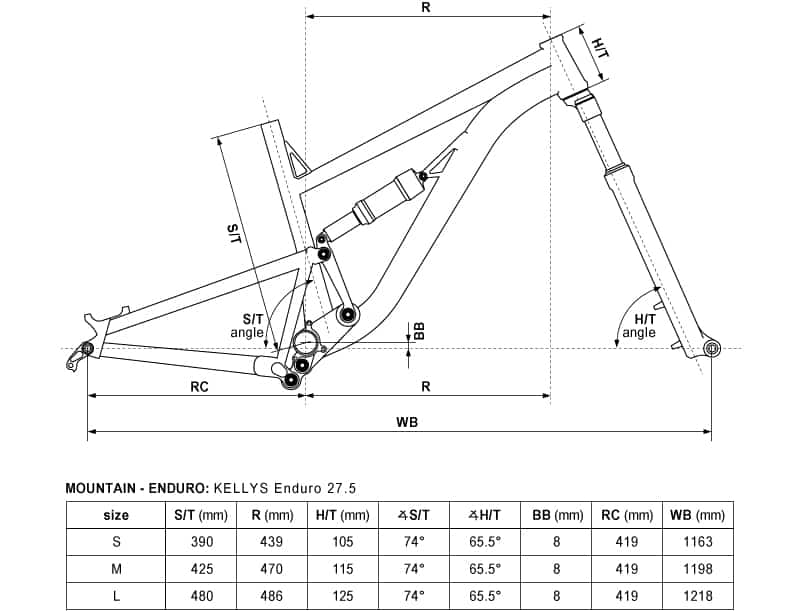

Geometry
